Simulation Platforms

::: aside References:

1. 如何在线虚拟仿真Arduino？Arduino仿真软件介绍!_哔哩哔哩_bilibili
   • Searched by arduino 仿真实验室 in DDG
2. Arduino 用Proteus仿真基础知识和实例 - CSDN博客 (Found in s1)
3. 欢迎使用Wokwi! | Wokwi Docs
4. UnoArduSim：无需Arduino板即可学习Arduino编程和调试代码的模拟器 - 知乎
5. 【工具推荐】Arduino仿真工具合辑 - CSDN博客
6. Arduino 仿真 - 小鹏STEM
7. Best Arduino Simulators (Online & Offline): Our 11 Picks
   • Searched by Simulator for Arduino in DDG
8. Fritzing电路仿真 - 萧驭 - 博客园
   • Searched by fritzing 仿真 in DDG
9. Arduino Workshop-Piezo Knock Sensor - Hackster.io
   • Searched by Piezo electric disc experiments with Arduino in DDG
10. Supported Hardware - Docs - Wokwi
11. Build a circuit - Fritzing
    • Searched by fritzing breadboard in DDG :::

Notes:

(2024-10-23)

1. Tinkercad

   • Circuits on Tinkercad - Tinkercad ^(r1-bili)

   (2024-10-25)

   • Able to simulate Piezo element.

   • Able to simulate Force Sensor (Prompted by keyword: “pressure”)

2. Proteus

   • It can do simulation for UNO. (r2-csdn)

   • Input .hex file generated from Arduino IDE. (r5-csdn

3. Wokwi

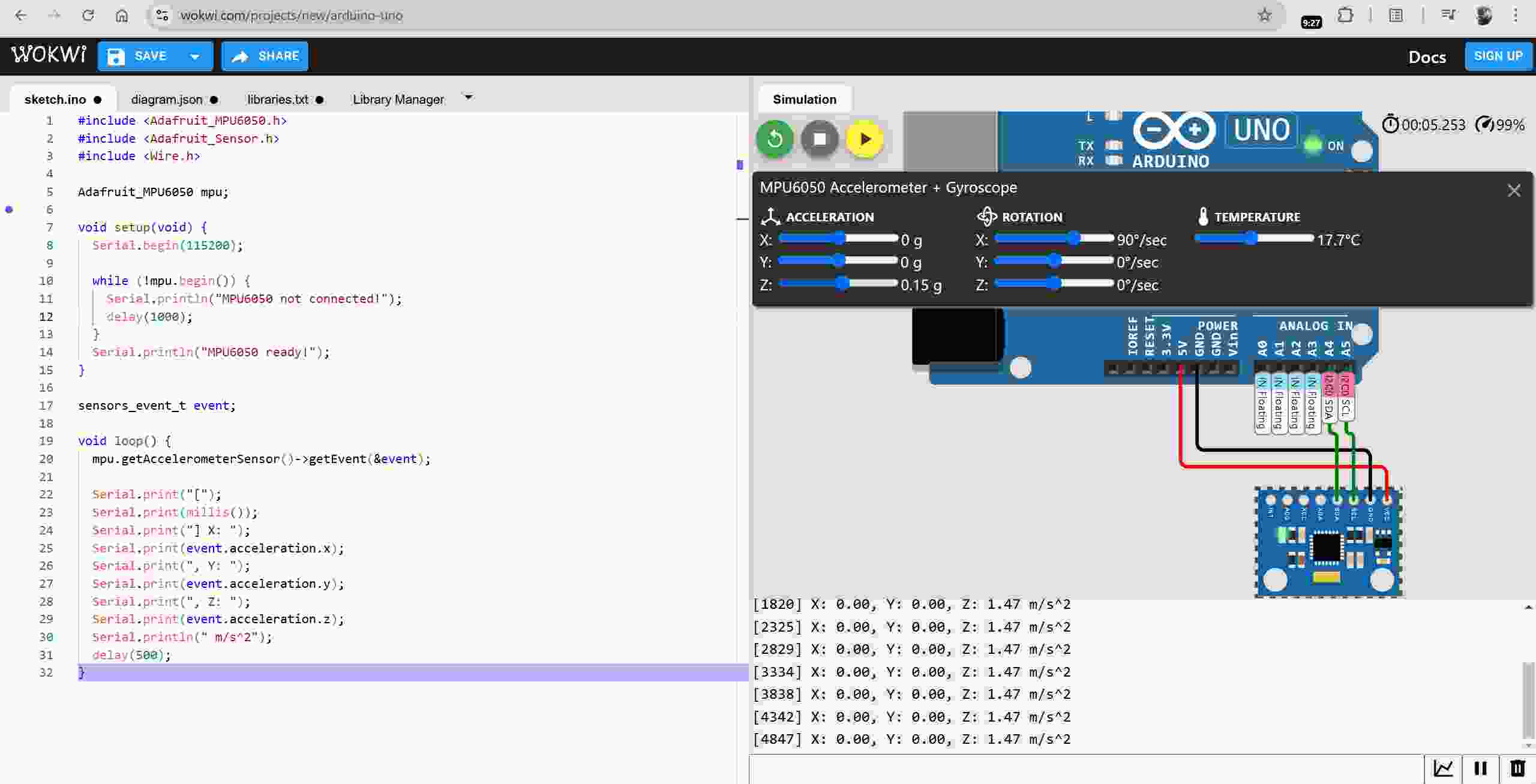

   • Example of using I2C to read an acceleromotor: wokwi-mpu6050 6-Axis Accel & Gyro Sensor



   • Don’t know how to simulate the communcation between two Arduino boards, as there is only one file: sketch.ino in the code editor.

   • Doesn’t have Piezo elements for simulation.

     It has a piezoelectric buzzer: wokwi-buzzer Reference - Wokwi Docs

   • Doesn’t have oscilloscope.

     It has Logic Analyzer for learning I2C protocol. (Found when browsing the Docs)

   • Most of the ‘Supported Hardware’ have associate libraries. (r10-Wokwi)

UnoArduSim

Fritzing

(2024-10-24)

5. Fritzing

   • Many hardware breadboard illustions (Piezo-demo) has a designation of this software.

   • Some review mentioned its simulation is so-so. (Frit-Cnblogs)

   • Versions after 1.0.0 are not free. I downloaded: fritzing.0.9.3b.64.pc.zip from a 3rd party website.

   (2024-12-03)

   • The component: Mystery Part is used for searching a part that has the same properties you set to the “Mystery Part” ^r11-Circuit.

Import Components to Fritzing

1. Problems:

   1. How to add SparkFun components to fritzing?

   ::: aside

   References

   {{{ 1. [sparkfun/Fritzing_Parts](https://github.com/sparkfun/Fritzing_Parts) }}}
   :::

2. Supports:

   1. “Core” –> “Import” ^r1-add

   ::: aside

   References

   {{{ 1. [How to add a new part to Fritzing? - Wiztaqnia](https://www.wiztaqnia.com/how-to-add-a-new-part-to-fritzing/)
   Searched by `add external part to fritzing` at [DDG](https://duckduckgo.com/?q=add+external+part+to+fritzing&ia=web) }}}
   :::
