Memo: Lang - Markdown | Syntax & Misc

Table of contents

一级标题

二级标题

正文

bold text （设置快捷健 ,b

italic text (斜体快捷键 ,i)

bold italic

wasted text (删除线 ,s)

3个` 括起来是代码块(1左边那个键)

加上python会显示对应的高亮

1

print("hello")

[Named Link](http://www.baidu.com/"Named link title")

http://www.baidu.com/

http://example.com/

heading-1 (转到一级标题处）

First Header second Header
Content Cell Content Cell
content Cell content cell

一行代码 用` `括起来

code

  • Bullet List Item1 (*号和文字之间有空格）
    • Nested bullet
      • Sub_nested bullet etc
        • Sub_nested
          • sub_nested
  • Bullet List item 2

1.A number list 1. A nested numbered list 2, which is numbered 2.which is numberd

  • [] An uncompleted task ( - 和 [ 之间有空格）
  • A complete task
    • [] A subtask

引用块

子引用块

— 水平线

picture alt
picture alt
Title 1

折叠内容Content 1 Content 1 Content 1 Content 1 Content 1

F

多行公式独立编号：(来源：Markdown下LaTeX公式、编号、对齐)

$$ \begin{eqnarray*} x^n+y^n &=& z^n \tag{1.4} \\ x+y &=& z \tag{1.5} \end{eqnarray*} $$

单个公式换行:

单个公式很长的时候需要换行，但仅允许生成一个编号时，可以用split标签包围公式代码，在需要转行的地方使用\\，每行需要使用1个&来标识对齐的位置，结束后可使用\tag{...}标签编号。

$$ \begin{split}a &= b \\c &= d \\e &= f \end{split}\tag{1.3} $$

字母头上 ^

1

$\^θ$

用 vim 插件 MarkdownPreview 在浏览器中可以正确渲染这个公式， 但是 Hugo 的KaTex 需要多打一个back slash：\\^θ 才能正确渲染，但这样做 vim 插件里就渲染不对了。

单行写分段函数

For katex, there is one more \

1

\\{^{x=0}\_{x=1}

(从知乎看到的，忘了记录是哪个帖子)

交换图表

MathJax基础（10）：Commutative diagrams

$$ $\require{AMScd}$ \begin{CD} A @>a>> B\\ @V b V V= @VV c V\\ C @>>d> D \end{CD} $$

mermaid style

%% node style classDef lyrs fill:#ff9 class lyr11,act1,lyr12,lyr21,act2,lyr22 lyrs; %% link linkStyle 9,10,11,12,16,17,18,19 stroke:#0af,stroke-width:3px %% fontsize classDef node font-size:20px;

Anchor

Uppercase -> lowercase; Spaces -> -

Github Markdown anchor only linking to top of the page


Images side by side

table

1
2
3
4
5

<table><tr>
    <td><img src="./pictures/DOG.png"><center style="font-size:14px;">是因为边界没有极值？所以只用中间层</center></td>
    <td><img src="./pictures/DOG_levels.png"><center style="font-size:14px">图2.DOG金字塔的实际显示效果</center></td>
    <td><img src="./pictures/SIFT_Features.png"><center style="font-size:14px">图3.DOG图像归一化结果</center></td>
</table>

figure

  1. Problems:

    1. Display multiple image horizontally without using .css file

  1. Supports:

    1. <figure style="">

      1
2
3
4
5

      <figure style="display: flex; justify-content: space-between; align-items: center;">
  <img src="path/to/image1.jpg" alt="Description of image 1" style="width: 48%;">
  <img src="path/to/image2.jpg" alt="Description of image 2" style="width: 48%;">
</figure>
<figcaption style="text-align: center; margin-top: 8px;">Fig.1 - Two images side-by-side using inline styles.</figcaption>

    ::: aside

    1. Gemini 2.5P - Show Images Side-by-Side with CSS :::

图片 caption

  1. Use <figcaption>

    • References: {{{

      1. Gemini 2.5P - Adding Captions to HTML Images }}}

    • Supports:

      (2025-09-13T19:47)

      1. Warp the <img> tag in a <figure> tag:

        1
2
3
4

        <figure>
  <img src="path/to/img.png" alt="Alternative text" width="280"></img>
  <figcaption>Description</figcaption>
</figure>

特殊字符

Common Unicode

Clipboard of symbl.cc

εφμf𝐱⋱⋮⋯⌊⌋σ√↓↑↓▼⬇λ˙⋅□↑⇔γβ∈α∑×‖⑊ ⊠∂Λθ∭∞°Σ➔©→✅⬯⬭τδ⊗∫𝚺𝛍𝐔𝐈𝐮∈𝐱𝐌𝐖𝚫ℤω℮∏‖⊙⊛ηρ𝐝𝐜𝐕𝒢𝐭𝐉𝐦𝛈≈❙❘⇤↳⋮⋆⭑✦★•𝑳𝐿𝐲𝐏𝐩𝐪𝐚𝐛𝐦𝐧𝐊𝐑𝐭𝐀𝐁𝐐𝐂𝐇𝐅𝐕|⏐▭✚▱𝐘𝐗𝐳𝐃𝐄⬯˚∘Δ😊≤▱■⌷⍨⍩⍤⟨〈⟩⬮↘∇𝛁 ▦

  • Less than < will be mis-parsed as a html syntax by vim-markdown, use ❮ (Heavy Left-Pointing Angle Quotation Mark Ornament, brackets), or math $<$

    (2025/02/11)

    • Use html code: &lt;, &gt; (Found when copying text out from a .docx in Gmail)

  • ${}$ won’t render the curly braces { }, use ｛ ｝ (Fullwidth Curly Brackets)

    Or $\\{ \\}$

  • 画斜线角度不够，可以用 ellipsis ⋱⋰ (Up Right Diagonal Ellipsis)

  • 可以在终端里显示的图形符号：Dingbats 集，和 Miscellaneous Symbols 里有一些。

  • 括号：⦗，因为 goat 里 ( 显不出来，也可以用中文括号（，不过显示出来偏右：和右边的字符有点重叠。

    List of all Unicode’s open/close brackets - SO

  • Numbers in Dingbats: ➀ ➁ ➂ ➃ ➄ ➅ ➆ ➇ ➈ ➉

改变 md 属性

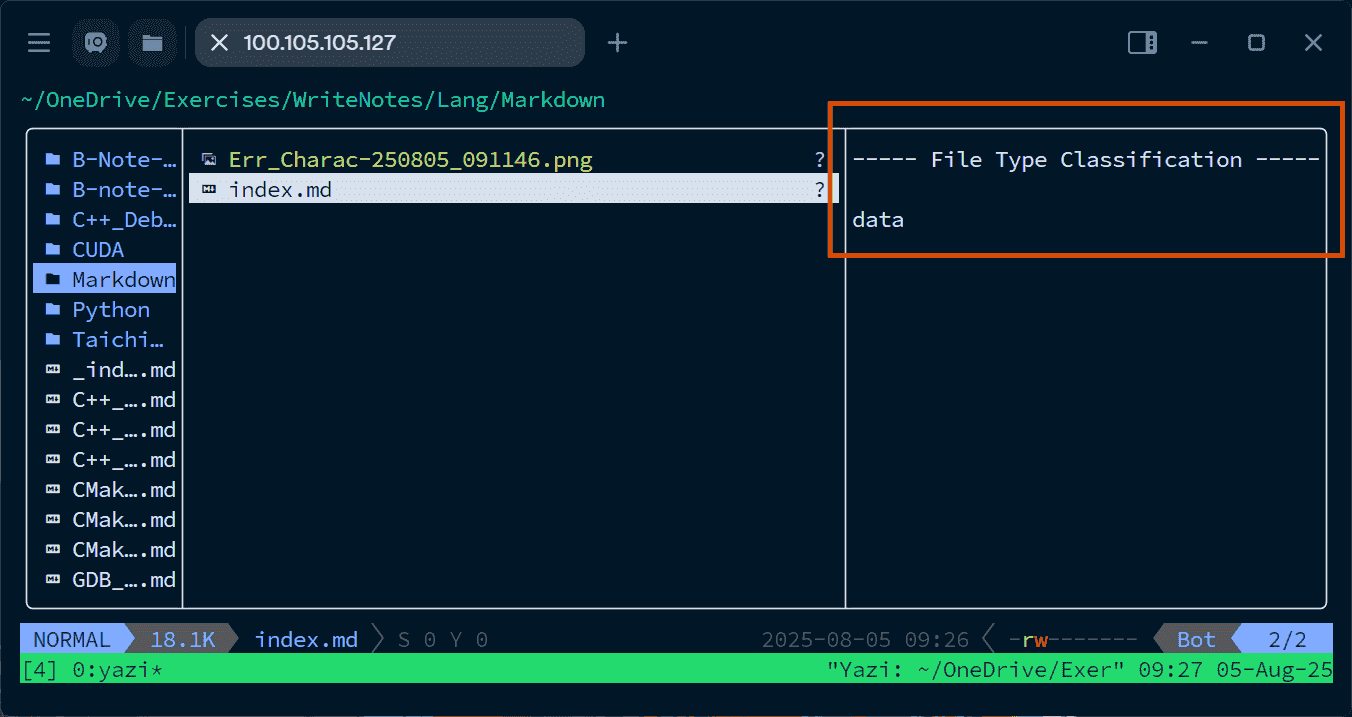

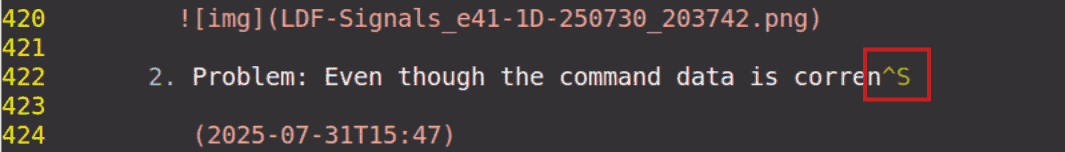

  1. Ctrl + S 字符 (^S) 会改变 Markdown 文件的文件类型

    • Supports:

      (2025-08-05T09:36)

      1. 一般 md 文件，在 yazi 里按回车会在终端里直接打开，但是如果文件中出现了 Ctrl+S 字符， 打开方式就变成用 GUI 的软件打开

        img img

表格列宽

Cvt 2 Excel

References:

  1. Online MD to XLS converter | Free GroupDocs Apps
    • Searched by convert markdown table to excel sheet in DDG

Notes:

(2024/12/20)

  1. Upload .md then download .xlsx r1-GroupDocs

整体缩放表格

  1. 用 css 样式

    • References: {{{

      1. Gemini 2.5P - Scaling Markdown Tables with HTML/CSS }}}

    • Supports:

      (2025-08-28T15:08)

      1. Define a sytle in the file r1-Gemini

         1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

        <style>
  /* Styles for the screen */
  .my-table-wrapper {
    overflow-x: auto; /* Allow scrollbar on screen if needed */
  }

  /* Styles ONLY for printing */
  @media print {
    body {
      font-size: 10pt; /* Set base font size for the whole document */
    }
    .my-table-wrapper {
      overflow-x: visible; /* Ensure no scrollbar is printed */
    }
    .my-table-wrapper table {
      width: 100%;
      table-layout: fixed;
    }
    .my-table-wrapper th, .my-table-wrapper td {
      word-break: break-all;
      font-size: 9pt; /* Further reduce font in table if needed */
    }
  }
</style>

<div class="my-table-wrapper">

| Header 1 | Header 2 | A_very_very_long_and_unbreakable_header_string_that_causes_issues |
|----------|----------|-------------------------------------------------------------------|
| Data 1   | Data 2   | Some content that needs to fit neatly on the printed page.        |

</div>

Vim 中单格换行

  1. Problems:

    1. 用 vim 编辑 Markdown，一个 cell 的内容太多，让一行太长，不美观，不利于在 vim 中阅读

    2. GoAT (diagon) 可以固定 table 的布局，但是数学公式无法渲染，也不可使用 html 语法

       1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

      \`\`\`goat
┌──────────────┬─────────────────────────┐
│              │ Ray                     │
├──────────────┼─────────────────────────┤
│Function      │ $y=x$                   │
├──────────────┼─────────────────────────┤
│Parametric    │ (Origin, Direction, Len)│
│equations in  │                         │
│Vector form   │                         │
├──────────────┼─────────────────────────┤
│Parametric    │ $x = o_x + d_x t$       │
│equations in  │ $y = o_y + d_y t$       │
│component form│                         │
└──────────────┴─────────────────────────┘
\`\`\`

  2. Supports:

    1. Quarto supports multiline “grid” tables r1-GPT5

       1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

      +----------------------+------------------------------+
|                      | Ray                          |
+======================+==============================+
| Function             | $y = x$                      |
+----------------------+------------------------------+
| Parametric           | (Origin, Direction, Len)     |
| equations in         |                              |
| Vector form          |                              |
+----------------------+------------------------------+
| Parametric           | $x = o_x + d_x t$            |
| equations in         | $y = o_y + d_y t$            |
| component form       |                              |
+----------------------+------------------------------+

    ::: aside

    References {{{ 1. [GPT5 - Markdown table cells multiline](https://chatgpt.com/c/6910f49b-62f0-832d-9867-d53846628f19) }}}
    :::

分栏

Problems:

  1. 两个代码块并排显示，图片并排显示

VSCode extension: markdown-fence

Use HTML Table

  1. Problems:

    1. VSCode extension requires VSCode to generate html code, which is cumbersome.

  2. Supports:

    1. Use HTML table r1-Gemini:

       1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22

      <table>
<thead>
  <tr>
    <th style="text-align:left; padding:8px; border-bottom:1px solid #ddd;">Left title</th>
    <th style="text-align:left; padding:8px; border-bottom:1px solid #ddd;">Right title</th>
  </tr>
</thead>
<tbody>
   <tr>
     <td style="vertical-align: top; width: 50%; padding-right: 1rem;">
     <pre style="margin:0;"><code class="language-c">
     R_IIC00_Master_Send(0XC0, data_buf_tx, 1);
     </code></pre>
     </td>
     <td style="vertical-align: top; width: 50%;">
     <pre style="margin:0;"><code class="language-c">
     R_IIC00_Master_Send(0XC0, data_buf_tx, 1);
     </code></pre>
     </td>
   </tr>
</tbody>
</table>
      • Empty lines are not allowed.

    ::: aside

    References {{{ 1. [Gemini 2.5P - Markdown Two-Column Layout Methods](https://gemini.google.com/share/ed42f08f0ca3) 2. [Gemini 2.5P - 2-column layout in Markdown](https://chatgpt.com/c/690e4c7e-2084-8325-9023-0df26622653e) }}}
    :::

打印分页

  1. 使用 html tag

公式

箭头指示

DDG search: “latex math equation block where a symbol is pointed by an upward arrow?”

Arrow to an equal symbol in a equation to justify it - SE

$$ a+b\underset{\substack{\color{red}\uparrow \\\ % or: \rotatebox{90}{$\longrightarrow$} \mathclap{\textup{\tiny commutative}} \\\ \mathclap{\textup{\tiny property}}}}{=}b+a $$

符号加方框

1

\boxed{x}
$$ \boxed{x} $$

multi-line

(2024/06/17)

Mathjax

(2025-05-15T23:28)

  1. 不支持使用 \bm 加粗，例如：[^{\bm \mu}_1]:

    $$ 𝐭' = 𝐏⋅ 𝐓_{w2c}⋅ [^{\bm \mu}_1] \\\ $$

Small text

(2024-05-24)

  1. Use the attribute font-size of tag <p>, e.g., <p style="font-size:10px">text</p>:

    text

  2. Keep the text inline without going to a new line: <span style="font-size:10px; color:red;">text</span>: text

  3. <small>text</small>: text

  4. Deprecated in HTML5: <font size="3" color="red">text</font>: text

iframe

(2024-01-21)

  • The size of the content can be set as below:

    1
2
3
4
5

    <iframe width="560" height="315"
src="https://www.youtube.com/embed/-P28LKWTzrI?si=szYmMkdL7Ixw-6_4"
title="YouTube video player" frameborder="0"
allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share"
allowfullscreen></iframe>

Diagrams

Mermaid

mermaid-cli

References:

  1. mermaid-js/mermaid-cli
  2. Could not find expected browser chrome locally - Stack Overflow
    • Searched by mermaid Error: Could not find Chrome (ver. 131.0.6778.85). This can occur if either in DDG

Notes:

(2024-07-25)

  1. Steps

    • Install

      1

      npm install -g @mermaid-js/mermaid-cli

    • Edit input.mmd:

      1
2
3
4
5

      classDiagram-v2
    class Pancake {
    }
    class Waffle {
    }

    • Export to svg: usage

      1

      mmdc -i input.txt -o output.svg -b transparent
      • Either .mmd or .txt works.

    • Export to png:

      1

      mmdc -i input.mmd -o out.png

      The content of the input.mmd is pure mermaid syntax:

      1
2

      flowchart TD
    Start(("Start")) --> Initialize["Initialize"] --> End(("End"))

  1. No chrome found?

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

    zichen@House:~/OneDrive/Exercises/Experiments/Embed/03_05-Guide-Hongsheng-LIN_Program$ mmdc -i test.txt -o output.svg -b transparent
Generating single mermaid chart

Error: Could not find Chrome (ver. 131.0.6778.85). This can occur if either
 1. you did not perform an installation before running the script (e.g. `npx puppeteer browsers install chrome-headless-shell`) or
 2. your cache path is incorrectly configured (which is: /home/zichen/.cache/puppeteer).
For (2), check out our guide on configuring puppeteer at https://pptr.dev/guides/configuration.
    at ChromeLauncher.resolveExecutablePath (file:///usr/local/lib/node_modules/@mermaid-js/mermaid-cli/node_modules/puppeteer-core/lib/esm/puppeteer/node/BrowserLauncher.js:266:27)
    at ChromeLauncher.executablePath (file:///usr/local/lib/node_modules/@mermaid-js/mermaid-cli/node_modules/puppeteer-core/lib/esm/puppeteer/node/ChromeLauncher.js:202:25)
    at ChromeLauncher.computeLaunchArguments (file:///usr/local/lib/node_modules/@mermaid-js/mermaid-cli/node_modules/puppeteer-core/lib/esm/puppeteer/node/ChromeLauncher.js:83:37)
    at async ChromeLauncher.launch (file:///usr/local/lib/node_modules/@mermaid-js/mermaid-cli/node_modules/puppeteer-core/lib/esm/puppeteer/node/BrowserLauncher.js:45:28)
    at async run (file:///usr/local/lib/node_modules/@mermaid-js/mermaid-cli/src/index.js:500:17)
    at async cli (file:///usr/local/lib/node_modules/@mermaid-js/mermaid-cli/src/index.js:202:3)

    This issue is solved by installing the packages showed in the prompts r2-SO:

    1
2
3
4
5
6

    zichen@House:~/OneDrive/Exercises/Experiments/Embed/03_05-Guide-Hongsheng-LIN_Program$ npx puppeteer browsers install chrome-headless-shell
Need to install the following packages:
puppeteer@23.9.0
Ok to proceed? (y) y

chrome-headless-shell@131.0.6778.85 /home/zichen/.cache/puppeteer/chrome-headless-shell/linux-131.0.6778.85/chrome-headless-shell-linux64/chrome-headless-shell

Mermaid CDN

  • Problems:

    (2025-09-16T09:04)

    1. Quarto internal mermaid doesn’t perform well.

  • References:

    1. Usage | Mermaid - JS.ORG

  • Supports:

    (2025-09-16T09:30)

    1. The following snippetr1-Docs written in an markdown file won’t be rendered by MarkdownPreviewEnhanced

      1
2
3
4
5
6
7
8
9

      <pre class="mermaid">
graph LR
    A --- B
    B-->C[fa:fa-ban forbidden]
    B-->D(fa:fa-spinner);
</pre>
<script type="module">
  import mermaid from 'https://cdn.jsdelivr.net/npm/mermaid@11/dist/mermaid.esm.min.mjs';
</script>
      • It may need extra command to trigger rendering.
      • The index.md generated by executing quarto render index.qmd seems to contain javascript syntax for mermaid diagram.

    2. An html containing a mermaid diagram can be displayed with iframe. However, Hugo has difficulty to locate the html file.

Circuits

(2024-10-15)

  • I wanted to include analog circuits in my blog post. The PlantUML seems not to support circuits diagrams after reading its docs.

  • Search: “can plantuml draw analog circuits?” in DDG

Add Timestamp

Problems:

(2025-02-21)

  1. I want to add the current time as version label.

References:

  1. javascript - Auto insert date and time in form input field? - Stack Overflow
    • Searched by javascript How to add the current data and time automatically in the markdown file in DDG
  2. DeepSeek

Notes:

  1. One approach is to use an input field, where the current time is displayed by default r1-SO. However, in the VSCode extension: “Markdown-Preview-Enhanced”, the input field appears blank. And the time is missing after exporting the document to a PDF. The script works in a browser.

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

    ### Method 1

<input type="date" id="myDate" />
<input type="time" id="myTime" />

<script type="text/javascript">
function SetDateTime() {
    var date = new Date();

    // Set the date
    var day = date.getDate();
    var month = date.getMonth() + 1;
    var year = date.getFullYear();

    if (month < 10) month = "0" + month;
    if (day < 10) day = "0" + day;

    var today = year + "-" + month + "-" + day;
    document.getElementById('myDate').value = today;

    // Set the time
    var hours = date.getHours();
    var minutes = date.getMinutes();
    var seconds = date.getSeconds();

    if (hours < 10) hours = "0" + hours;
    if (minutes < 10) minutes = "0" + minutes;
    if (seconds < 10) seconds = "0" + seconds;

    var currentTime = hours + ":" + minutes + ":" + seconds;
    document.getElementById('myTime').value = currentTime;
}
</script>

<body onload="SetDateTime();">

Other contents...

  1. Based on the above script, date and time can be obtained as plain text r2-DS:

    This method can display the time after exporting PDF via Chrome -> PDF in the extension “Markdown-Preview-Enhanced”, although the time is not there in the preview window.

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46

    ### Method 2

<div id="markdown-content">
    # My Markdown File
    **Date and Time:** <span id="currentDateTime"></span>

    This is some example Markdown content.
</div>

<script type="text/javascript">
    function insertDateTime() {
        var date = new Date();

        // Format the date
        var day = date.getDate();
        var month = date.getMonth() + 1;
        var year = date.getFullYear();

        if (month < 10) month = "0" + month;
        if (day < 10) day = "0" + day;

        var formattedDate = year + "-" + month + "-" + day;

        // Format the time
        var hours = date.getHours();
        var minutes = date.getMinutes();
        var seconds = date.getSeconds();

        if (hours < 10) hours = "0" + hours;
        if (minutes < 10) minutes = "0" + minutes;
        if (seconds < 10) seconds = "0" + seconds;

        var formattedTime = hours + ":" + minutes + ":" + seconds;

        // Combine date and time
        var formattedDateTime = formattedDate + " " + formattedTime;

        // Insert the formatted date and time into the Markdown content
        document.getElementById('currentDateTime').textContent = formattedDateTime;
    }

    // Call the function to insert the date and time when the page loads
    insertDateTime();
</script>

Other content ...

Code Call Graph

Problems:

  1. I want to place elements at exact positions in a diagram.

PlantUML for Call Stack

References:

  1. JianpingCAI/call-stack-to-plantuml - GitHub
    • Searched by plantuml for call stack graph in DDG
    • Other tools are mentioned in Perplexity
  2. 6. Layout — The Hitchhiker’s Guide to PlantUML documentation
    • Found in s1

Notes:

(2025/03/12)

  1. Use Activity diagram to illustrate a code r1-GitHub

  2. The positions of elements are determined by arrows r2-Hitchhiker

代码块自定义行号

Problems:

  1. Markdown 中的 Code block 的行号是从 1 开始，但是我想使用源文件中的行号

Issues:

  1. Use js library

Notes:

(2025-05-21T14:24)

  1. Highlight.js

注释

  1. 使用 html comment tag <!-- --> 中间不能有空行

    • Supports:

      (2025-08-25T11:07)

      1. 在 VSCode 插件 Markdown-preview-Enhanced 中， 如果注释语法错误，后文有的内容不会显示

        下面的多行注释不会成功，因为有空行：

        1
2
3
4
5
6

        <!--
* **References**:

  1. <a id=""></a>
     [Article 1]()
-->

        必须为连续，可能是因为 markdown 的连续几行会被解释成一行，如果有空行，就是两段了

        1
2
3
4
5

        <!--
* **References**:
  1. <a id=""></a>
     [Article 1]()
-->

      2. 必须是非空行，即使是有一个空格，也行。（这就是空格的意义）

        1
2
3
4
5
6

        <!--
* **References**:

  1. <a id=""></a>
     [Article 1]()
-->

图文混排

  1. Problems:

    1. 我想给文字加边框/下划线，并且在特定文字下面加箭头指示下一步推理。

    2. Markdown 不能指定文本之间的相对位置

  2. Supports:

    1. 使用 cssr1-GPT5， 但是复杂几何图形的绘制代码不好写

    ::: aside

    References {{{ 1. [GPT5 - Markdown 布局限制](https://chatgpt.com/s/t_690c1e913c94819180556b452600fc19) }}}
    :::

Integrate Excalidraw

  1. Problems:

    1. Excalidraw 能否用程序绘制，并嵌入 Markdown？

  2. Supports:

    1. @baptiste 的 minicali 可以用命令生成简单的元素 r1-

    ::: aside

    References {{{ 1. [baptiste/minixcali](https://github.com/baptiste/minixcali)
    Mentioned in [blag/ - maths in excalidraw](https://blag.bapt.xyz/posts/maths-excalidraw/) 2. [Integration | Excalidraw developer docs](https://docs.excalidraw.com/docs/@excalidraw/excalidraw/integration) }}}
    :::

  3. Actions:

Excalidraw Render Math

Export Math from qmd to Excalidraw

  1. Problems:

    1. @baptiste has already written many math equations in his qmd notes, so he wants to inserting those math blocks into Excalidraw.

    ::: aside

    References {{{ 1. [Quarto (maths) to Excalidraw #4144 · quarto-dev quarto-cli - GitHub](https://github.com/orgs/quarto-dev/discussions/4144)
    Searched by `quarto qmd integrate excalidraw` at [DDG](https://duckduckgo.com/?q=quarto+qmd+integrate+excalidraw&ia=web) }}}

  2. Supports:

    1. Quarto is based on pandocr1-Gemini. By creating Pandoc custom writer, and defining filter rules, math blocks can be converted into svg.

    2. Branch: math.preview.excalidraw.com r1-Gemini

    ::: aside

    References {{{ 1. [Gemini 2.5P - Quarto-Excalidraw Interoperability Discussion](https://gemini.google.com/u/1/app/75dd152969d32da9?pageId=none) 2. [Gemini 2.5P - Automating Excalidraw Math Import](https://gemini.google.com/u/1/app/015bc0595a89d342?pageId=none) }}}
    :::

Convert to Markdown

MarkItDown

  1. Problems:

    1. Convert various files to markdown for feeding LLM.

  2. Supports:

    1. Comparison MarkItDown with Pandoc r1-RealPython

    ::: aside

    References {{{ 1. [Python MarkItDown: Convert Documents Into LLM-Ready Markdown - Real Python](https://realpython.com/python-markitdown/) }}}
    :::
© 2020 - 2025 Zichen Wang
Built with Hugo
Theme Stack designed by Jimmy
